BMW iX M60: ENGINE & TECHNICAL DATA

THE iX M60BMW iX M60: ENGINE & TECHNICAL DATA

The key facts and figures for the BMW iX M60 at a glance:


  • Motor, electric range, electricity consumption, charging and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration

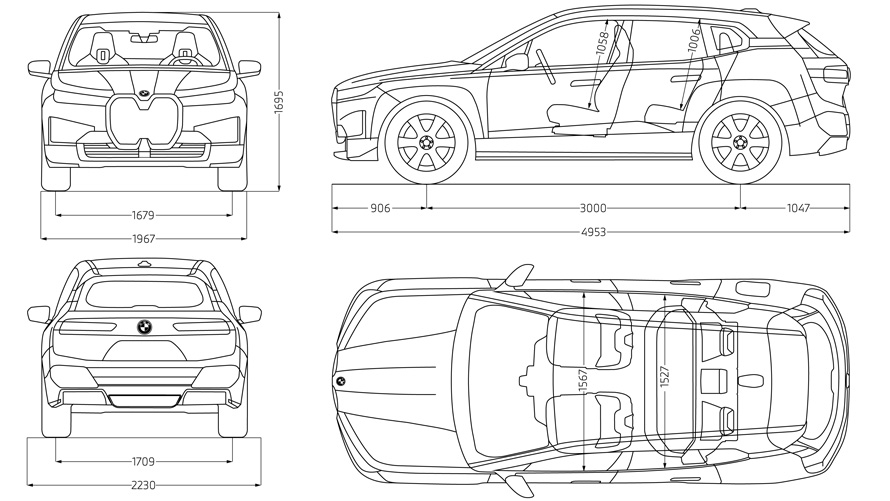

  • Weight, dimensions, wheel and tyre sizes

ENGINE AND TECHNICAL DATA OF THE BMW iX M60.

Select model
  • BMW iX M60

Weight

Unladen weight in kg (EU) 2670
Max. permissible weight in kg 3,160
Permitted load in kg 576
Permitted axle load front/rear in kg 1,530/1,794
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,750

Electric engine

Electric engine power kW (hp) 397 (540)/- [8]
Electric Engine torque (Nm) 1,015

Performance

Top speed fully electric in km/h 250
Acceleration 0–100 km/h in s 3.8

Range and charging

Electric range in km 500-563
Capacity of lithium-ion battery in kWh 108.6
Charging time 10-80% at DC fast charging station (max. charging power/time in min.) 195/35
AC charging time in hours, e.g. with Flexible Fast Charger / Wallbox (charging power 11 kW, 0% - 100%) 11

Fuel economy/emissions [1]

Energy consumption in kWh/100 km 24.7-22.0
CO2 emissions combined in g/km 0
Pass-by noise in dB(A) [3] - [8]

Wheels

Tyre dimensions front 255/50 R21 109 Y XL
Tyre dimensions rear 255/50 R21 109 Y XL
Wheel dimensions and material front 9,0 J x 21 inches, light-alloy
Wheel dimensions and material rear 9,0 J x 21 inches, light-alloy

Energy consumption and CO2 emissions of the BMW iX M60.

BMW iX M60:
Energy consumption in kWh/100 km (WLTP): 24.7–21.7*
Electric range in km (WLTP): up to 566–499*
CO2 emissions in g/km: 0

* Provisional data; energy consumption and range measured according to the WLTP test cycle.

** Electric drive with up to 397 kW, during temporary performance increase <10 seconds up to 455 kW.

*** Maximum torque of 1.015 Nm* in the Sport Mode respectively 1.100 Nm* with activated Launch Control.


Official data on power consumption and electric range were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp

Read more

Energy consumption and CO2 emissions of the BMW iX M60.

  • BMW iX M60:
    Energy consumption in kWh/100 km: 24.7-22
    Electric range in km: up to 566–499
    CO2 emissions in g/km: 0

    [1] Electric drive with up to 397 kW, during temporary performance increase <10 seconds up to 455 kW.

    [2] Maximum torque of 1.015 Nm in the Sport Mode respectively 1.100 Nm with activated Launch Control.


    [3] Due to regular software updates, screen designs in the communication may differ from the actual screen design in your car.

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    When charging times are shown they can be affected by a number of factors such as type of charger, voltage supplied to the charger/car and type of current (AC or DC) supplied to the charger/car. The car also plays a role in charging times as it can be set by the driver to accept various different amperage and should preconditioning be used to heat or cool the vehicle while charging this will also affect the charging time.

    The basis for the calculation of the charging times for 100 km range is the electric consumption of the vehicle based on the use of a high-Powered Charging station (HPC) or charging type and current as indicted in the literature above. The testing procedure measures are based on a 23 degrees Celsius battery start and ambient temperature with certification values excluding additional auxiliary consuming devices and systems within the vehicle such as seat heating, displays, air conditioning.

    Individual consumption (fuel economy) may differ due to driving profile, vehicle load profile, auxiliary consumer usage, temperature, and ambient conditions. Consumption is based on WLTP or NEDC (whichever is indicated) best case conditions and is independently tested for BMW Group. If you are comparing this range with other models or brands make sure they are stating the same WLTP or NEDC testing regime. These results can be used to compare vehicles on a close to “like for like” basis but are unlikely to be achieved in real world conditions for reasons including temperature variation, driving conditions and the use of the auxiliary systems referred to above.

    Information provided and images displayed on this site include overseas models and may show some features not available in New Zealand. Please contact an authorised BMW dealer for specific information on vehicles and features available in New Zealand. Product changes may have been made since production of this content.

    The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

    [1] Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195.

    For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

    Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/

    [2] Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

    [3] The values measured in accordance with UN/ECE Regulation No. 51/EU Regulation 540/2014 are rounded.

    [4] The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

    [5] The recharged range in km after 10 minutes of High-Power-Charging was determined according to DIN70080 in the WLTP cycle. It depends on the vehicle equipment, individual driving profile, ambient temperature, charging status and the use of additional consumers.

    [6] The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

    [7] Temporary uprating <10 seconds in excess of specified nominal value

    [8] Provisional figures; any missing figures were unavailable at the time of publication.
